10G Triplex ONU

RTXM170-801

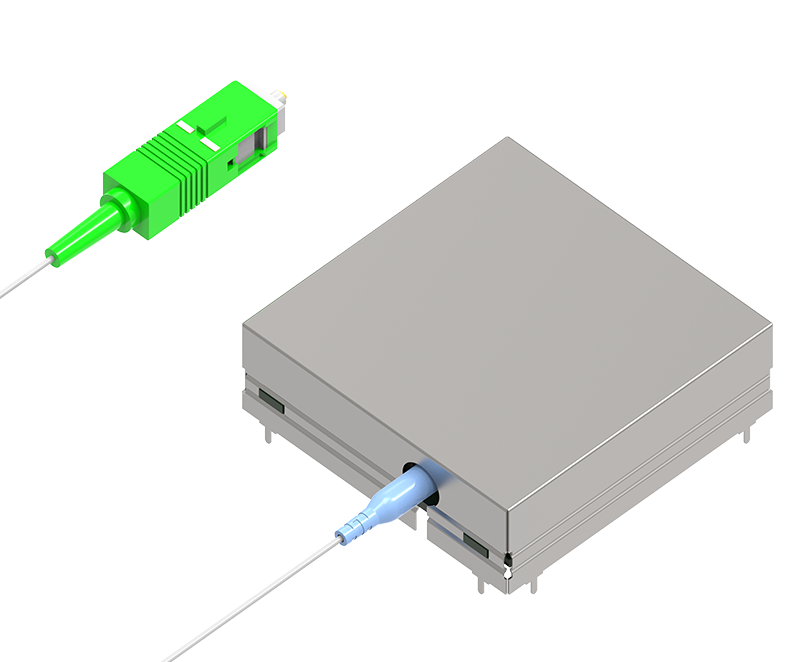

RTXM170-801 XGSPON ONU Triplexer Transceiver is designed for XGSPON transmission. The module incorporates a 10Gb/s 1270nm burst-mode transmitter, a 10Gb/s 1577nm continuous-mode receiver and a 1555nm PIN Analog CATV Receiver. They are compliant with the ITU-TG.9807,SFF-8472 and SFF-8472.The optical transceiver is RoHS compliant.

Inquiry Cart

Key Features

SFF form factor

Supports 1244.16Mb/s US and 2488.32Mb/s DS bit rate

Supports 45-1002MHz

Power dissipation <3W

Commercial case temperature range of 0°C to 85°C

+12/+3.3V power supply

Maximum link length of 20km on Single Mode Fiber (SMF)

Aligned with ITU-T G.984.2/G.984.5

1310nm DFB laser Burst-mode Transmitter

1490nm APD Continuous-mode receiver.

SC/APC Pigtail

I2C management interface

RoHS compliant

Application

XGS-PON ONU

Voice/Data/Video FTTx

Specifications

Data Rate

9.95Gb/s

Distance

20km

Case Temperature

0~70℃

Voltage Supply

12/3.3V

Transmitter

DFB

Receiver

APD

Wavelength

Tx 1270nm /Rx 1577nm

Connector

LC/UPC Pigtail or customized

Power consumption（Max）

3.5W
